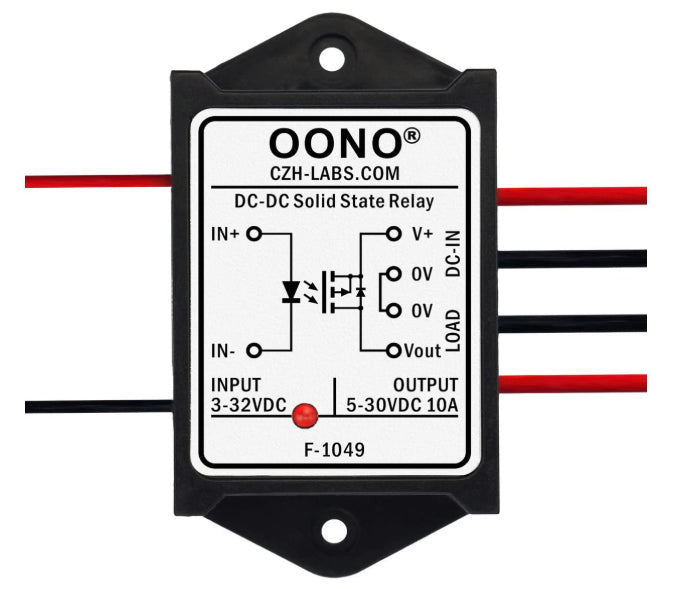

Wired DC-DC 10Amp Isolated Solid State Relay
Wired DC-DC 10Amp Isolated Solid State Relay
Wired DC-DC 10Amp Isolated Solid State Relay
Wired DC-DC 10Amp Isolated Solid State Relay

Wired DC-DC 10Amp Isolated Solid State Relay

$22.50
/

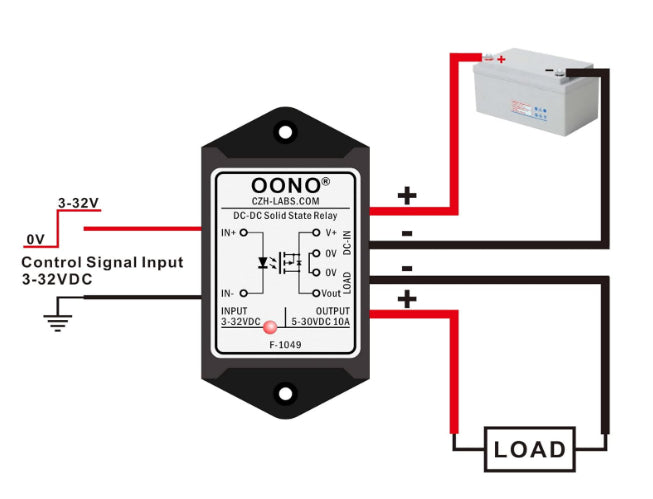

We have found this solid state relay to work well to be used to turn on/off your hardware.  Either by a toggle switch or master power on with the race car.  It's 10 Amp load is more than what is needed.

  • Photocoupler isolation between input control signal and controlled power, isolation surge voltage up to 5000V.
  • Input signal turn-on voltage DC 3 to 32V, turn-off voltage DC 0 to 0.8V. LED indication for relay turn-on.
  • Output voltage range: DC 5 to 30V. Maximum on-state average current 10 Amp. Maximum on-state current 20 Amp (< 2 second). Non repetitive surge peak on-state current: 160 Amp (<400uS). Maximum on-state resistance 8 milliohms(0.008 ohm).
